- 30W Output Power
- Strong Power
- 100,000 Hours
- Long Working Life
- Imported aluminum
- high hardness and corrosion resistance
- Intelligent Control
- Full-automation
- Power Consumption≤1KW
- Energy-saving
- Metal Plate
- light-weight and High Strength
Technical Parameter
| Roller Line Size | 810mm x 8600mm |
|---|---|
| Marking Area | 100mm x 100mm |
| Max. Marking Speed | 7000mm/s |
| Power Supply | 220V 10A 50Hz |
| Laser power | 30W |
| Power Consumption | < 1000W |
| Running Temperature | 0-40℃ |
| Running Humidity | 5%-75% |
| Overall Weight | 700KG |
| Machine Dimensions | 1100mm x 1400mm x 1780mm |
| Overall Structure | Metal Plate |

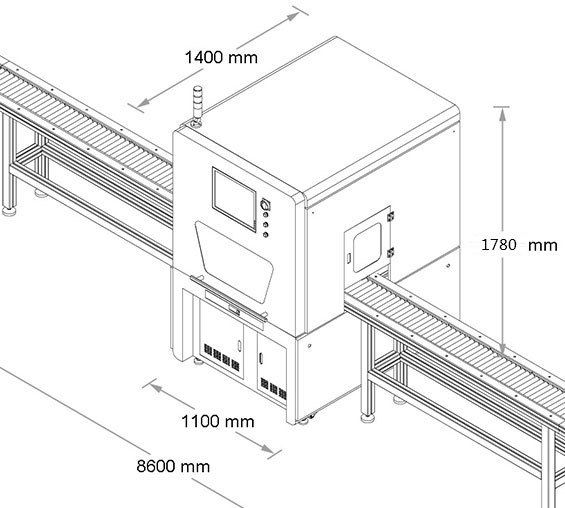

Dimensions
length：1100mm
width：1400mm
height：1780mm
Equipment Resolution
Supporting Format
Vector format
- AI
- PLT
- DXF
- JPC
- SVG
- NC, G
- BOT
- DST
Bitmap format
- BMP
- JPG
- JPEG
- GIF
- TGA
- PNG
- TIF
- TIFF
Package Contents
Equipment/Laser protective goggles/Lens Cleaning Paper/Testing Black Paper/Dimming Metal Card/Tooling
